Description

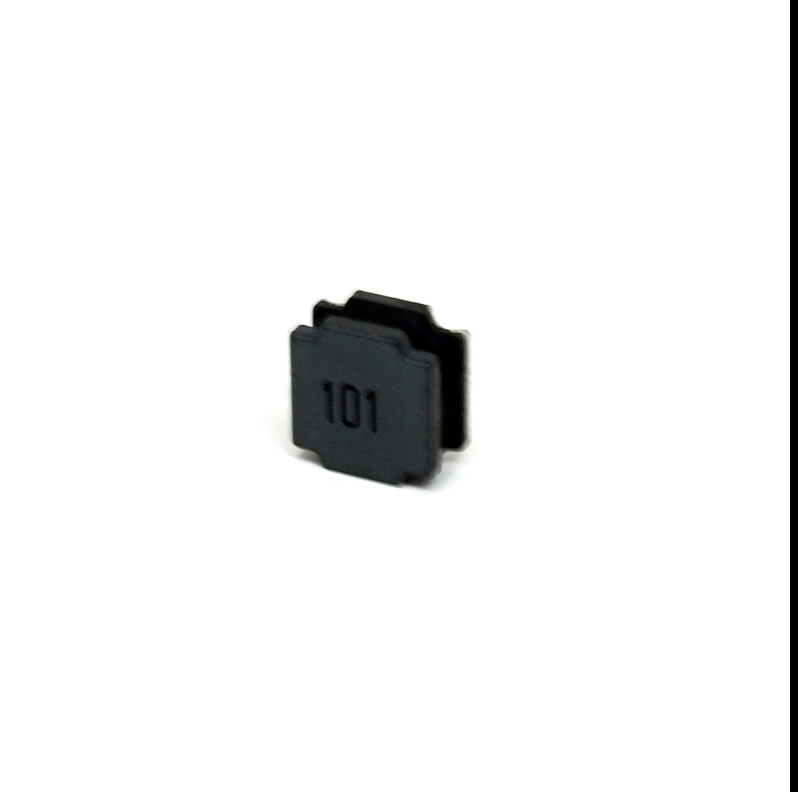

This is a 100µH 20% 0.715 Ohm 730 mA Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.
________________________________________
Features:
1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
4. 30% higher current rating than conventional inductors of equal size
5. Take up less PCB real estate and save more power
________________________________________
Package Includes:

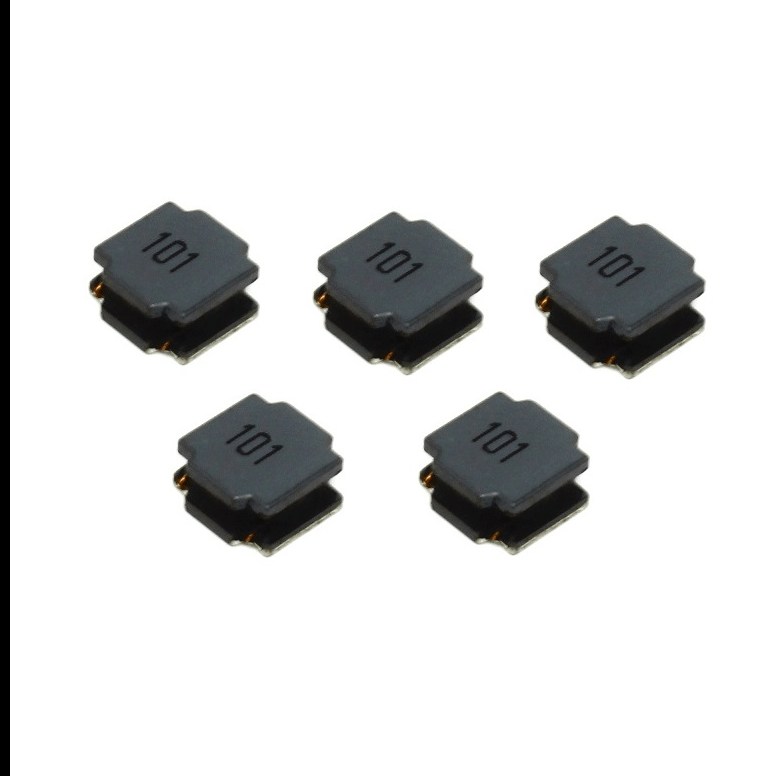

1 x 100µH 20% 0.715 Ohm 730 mA Coupled Inductor (Pack of 5).
Manufacturer: Generic
Inductance: 100uH
Tolerance (%): 20
Mounting Type: SMD
DC Resistance(mΩ) at 20°C: 0.715
Current Rating: 730mmA
Length (mm): 7.6
Width (mm): 7.6
Height (mm): 3.4
Weight (g): 0.8
Shipping Weight 0.005 kg
Shipping Dimensions 6 × 2 × 1 cm
