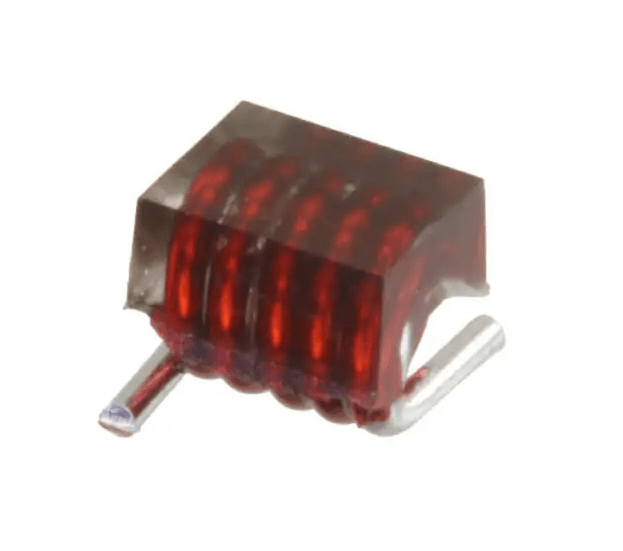

33nH 3A Air-Core Inductor (Pack of 2)
₹99 (Incl. of all taxes)
₹84 + ₹15 GST
MRP ₹114 26% OFF
greeninurja Benefits
GST Invoice Available
Secure Payments
365 Days Help Desk
Return & Warranty Policy
Upto 2 Days Returnable
Missing Product
Wrong Product
SKU: 872031
- Inductance: 33nH
- RMS Current (Irms): 3A
- Self Resonant Frequency Min.: 2.5GHz
- DC Resistance Max: 4.8 mOhm
- Inductance Tolerance: 5%
- Packaging: Cut Tape
- Air Core Inductor Case: 4.83mm x 3.81mm x 4.2mm
Similar Products
About This Product
Description
This is a 33nH 3A Air-Core Inductor. Air-Core RF Inductors, part of the wound air core inductor family, are ideal for RF circuits, broadband I/O filtering, frequency selection, or impedance matching. The air core inductor provides better performance over solid-core inductors with higher Q and better current handling capabilities.
Features:
- Air-Core Construction
- High Q
- High Current
- Excellent SRF
Package Includes:
1 x 33nH 3A Air-Core Inductor (Pack of 2).
| Manufacturer: | Generic |
| Inductance: | 33nH |
| Tolerance (%): | 5 |
| DC Resistance(mΩ) at 20°C: | 4.8 |
| Current Rating (A): | 3 |
| Frequency (Hz) | 2.5GHz |
| Mounting Type: | SMD/SMT |
| Length (mm): | 4.83 |
| Width (mm): | 3.81 |
| Height (mm): | 4.2 |
| Weight (g): | 0.5 |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 1 × 1 × 1 cm |
