Description

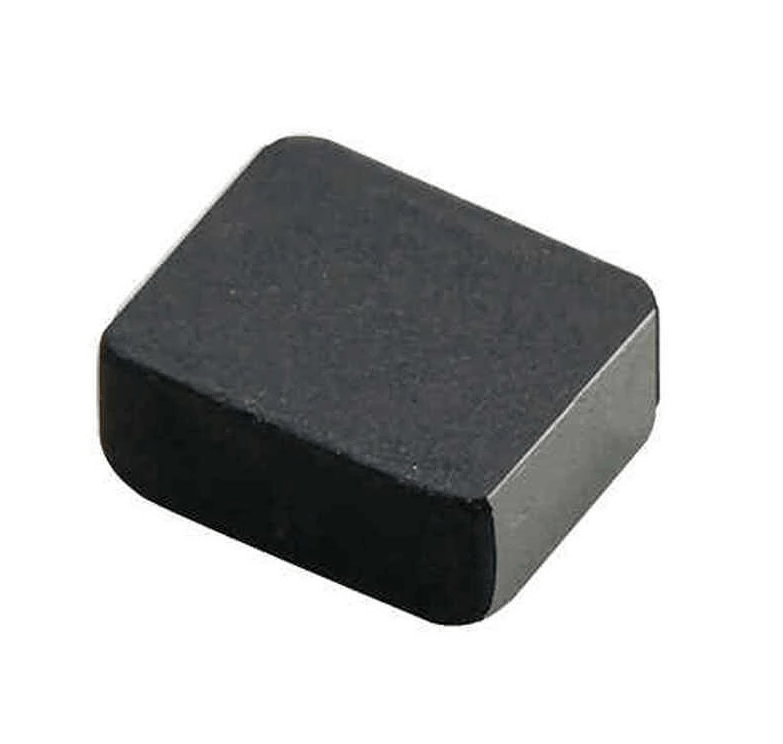

This is a 4.7µH 20% 0.503 Ohm 760 mA Coupled Inductor. It is a Coupled Inductor with a low DCR and high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.
________________________________________
Features:
1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
4. 30% higher current rating than conventional inductors of equal size
5. Take up less PCB real estate and save more power
________________________________________
Package Includes:
1 x 4.7µH 760 mA Coupled Inductor (Pack of 2).
Manufacturer: Generic
Inductance: 4.7uH
Tolerance (%): 20
Mounting Type: SMD/SMT
DC Resistance(mΩ) at 20°C: 0.503
Current Rating: 760mA
Length (mm): 3
Width (mm): 3
Height (mm): 1.4
Weight (g): 0.5 each
Shipping Weight 0.005 kg
Shipping Dimensions 1 × 1 × 1 cm
