Description

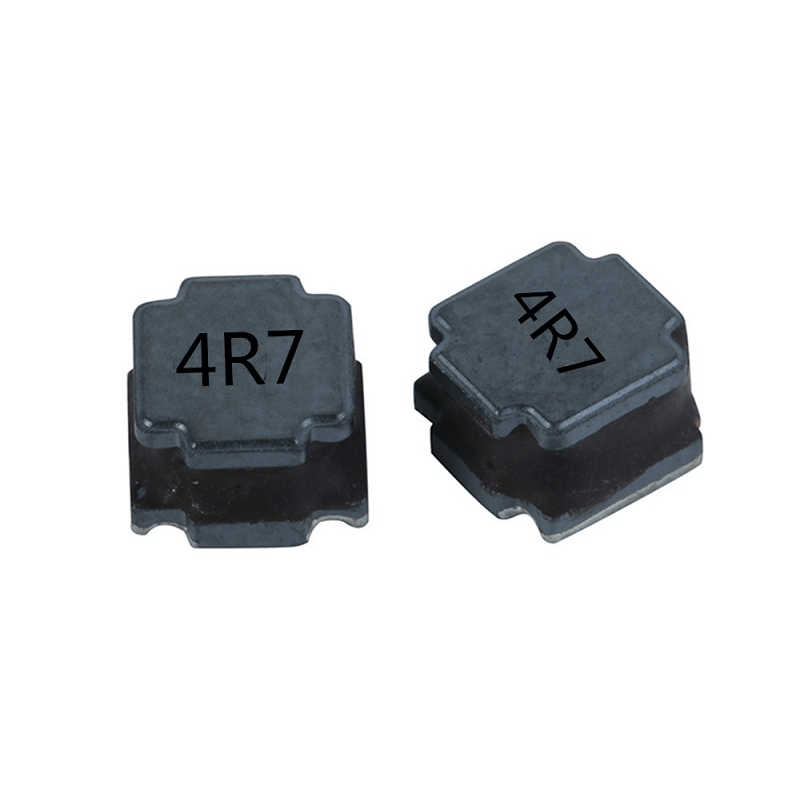

This is a 4.7uH 500mA Magnetic Shielded Multilayer Inductor. It is a magnetic shielded structured, low DCR, high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.
________________________________________
Features:
1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
4. 30% higher current rating than conventional inductors of equal size
5. Take up less PCB real estate and save more power
________________________________________
Package Includes:
1 x 4.7uH 500mA Magnetic Shielded Multilayer Inductor (Pack of 5).
Manufacturer: Generic
Inductance: 4.7uH
Tolerance (%): 30
Mounting Type: SMD
DC Resistance(mΩ) at 20°C: 22m
Current Rating (A): 500m
Operating Temperature (°C) – 40 to 125
Length (mm): 8
Width (mm): 8
Height (mm): 4
Weight (g): 1 each
Shipping Weight 0.01 kg
Shipping Dimensions 6 × 2 × 1 cm
