Description

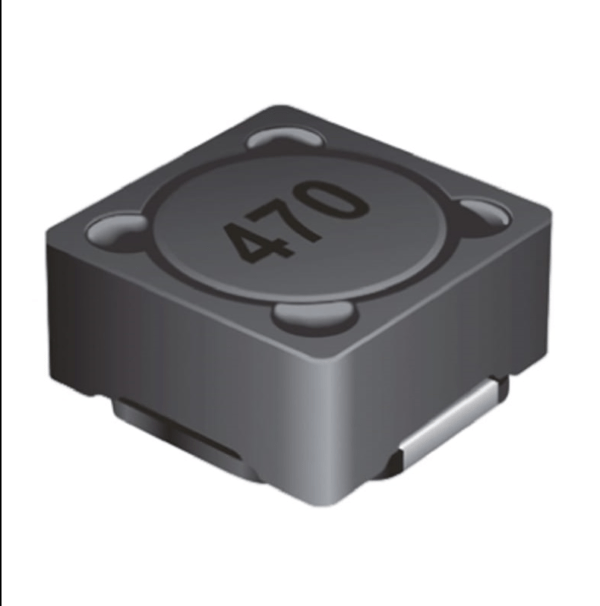

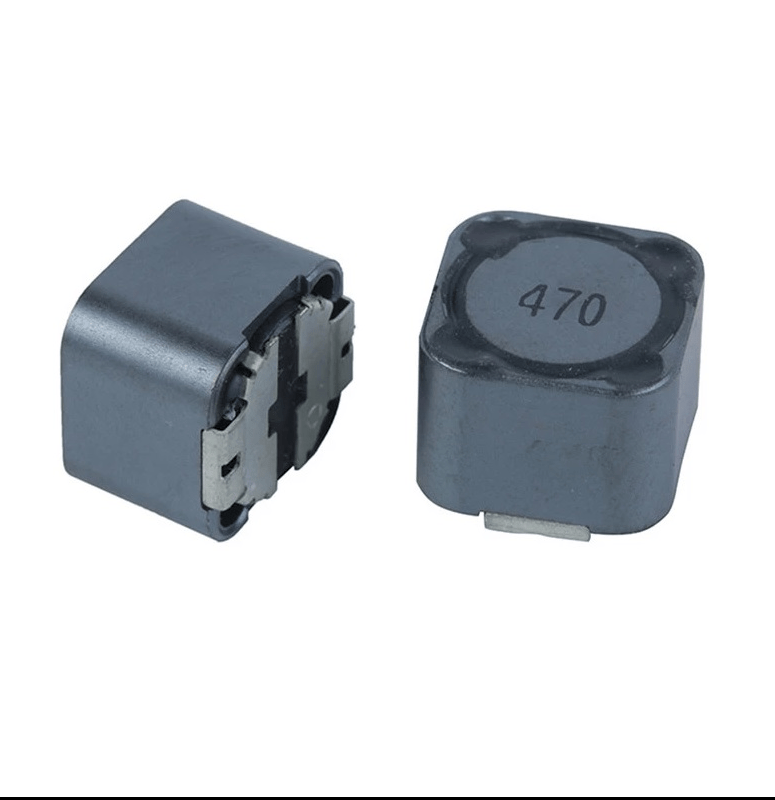

This is a 47uH 2.5A SMD Shielded Inductor. It is a magnetic shielded structured, low DCR, high rated current surface mount SMD power inductor. These are lead-free products, RoHS compliant. These inductors are widely used in buck converter, laptop, displays, network communication equipment, and etc.
________________________________________
Features:
1. Magnetic-resin shielded construction reduces buzz noise to ultra-low levels
2. Metallization on ferrite core results in excellent shock resistance and damage-free durability
3. Closed magnetic circuit design reduces leakage flux and Electro Magnetic Interference (EMI)
4. 30% higher current rating than conventional inductors of equal size
5. Take up less PCB real estate and save more power
________________________________________
Package Includes:

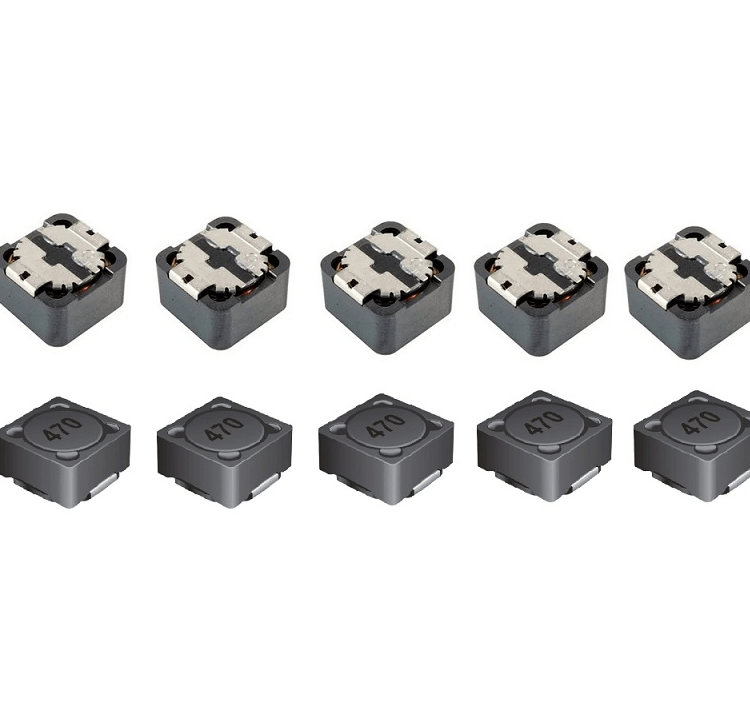

1 x 47uH 2.5A SMD Shielded Inductor (Pack of 5).
Manufacturer: Generic
Inductance: 47uH
Tolerance (%): 20
Case/Package: SMD
DC Resistance(mΩ) at 20°C: 0.31
Current Rating (A): 2.5
Operating Temperature (°C) -40 to 125
Length (mm): 12
Width (mm): 12
Height (mm): 7
Weight (g): 4
Shipping Weight 0.005 kg
Shipping Dimensions 7 × 3 × 1 cm
