Description

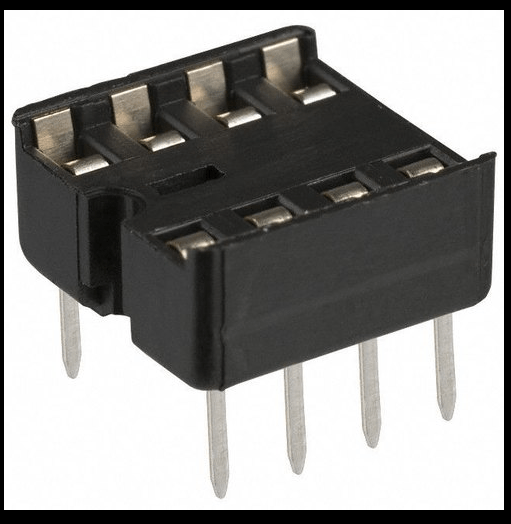

8 Pin IC Socket base adaptor is an 8 pin IC holder, which can be soldered directly onto the PCB. The IC can be removed from this socket when required. The IC is placed on the socket at the time of use. This base acts as a removable IC holder.
The socket is used when the IC is temperature sensitive and the heat from the soldering iron can damage the IC. This socket is used when working with a microcontroller IC and can be removed for programming.
________________________________________
Features:
1. 8 pins.
2. JDEC compliant.
3. Molded notch for proper orientation.
4. Easy to insert and remove ICs.
________________________________________
Package Included:
1 x 8 Pin DIP8 Integrated Circuit IC Sockets Adaptor( Pack of 10)
Manufacturer: Generic
Current Handle Capacity (A): 1
No. of Contacts: 8
Contact Material Phosphor Bronze
Contact Plating Tin
Operating Temperature (°C) -25 to 85
Flammability Rating UL94V-0

Color: Black
Insertion force 340g max per contact
Exertion Force 80g max per contact
Length (mm): 10
Width (mm): 10
Height (mm): 4
Weight (g): 1 (approx) (each)
Shipping Weight 0.005 kg
Shipping Dimensions 6 × 4 × 2 cm
15 Days Warranty Against Sealed Product
________________________________________
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defect. Replacement will be done against manufacturing defects.
________________________________________
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
________________________________________
Warranty Against Sealed Product:
This product comes with manufacturer seal so, warranty Policy shall cover only those issues pertaining to the manufacturing defects in the product. In any other case, No return will be accepted if the seal is broken.
