Description

ESP8266EX delivers highly integrated Wi-Fi SoC solutions to meet users’ continuous demands for efficient power usage, compact design and reliable performance in the IoT industry. With the complete and self-contained Wi-Fi networking capabilities, ESP8266EX can perform either as a standalone application or as the slave to a host MCU. When ESP8266EX hosts the application, it promptly boots up from the flash. The integrated highspeed cache helps to increase system performance and optimize system memory. Also, ESP8266EX can be applied to any microcontroller design as a Wi-Fi adaptor through SPI/SDIO or UART interfaces.
Pin Diagram

________________________________________
Features:

________________________________________
Package Includes:

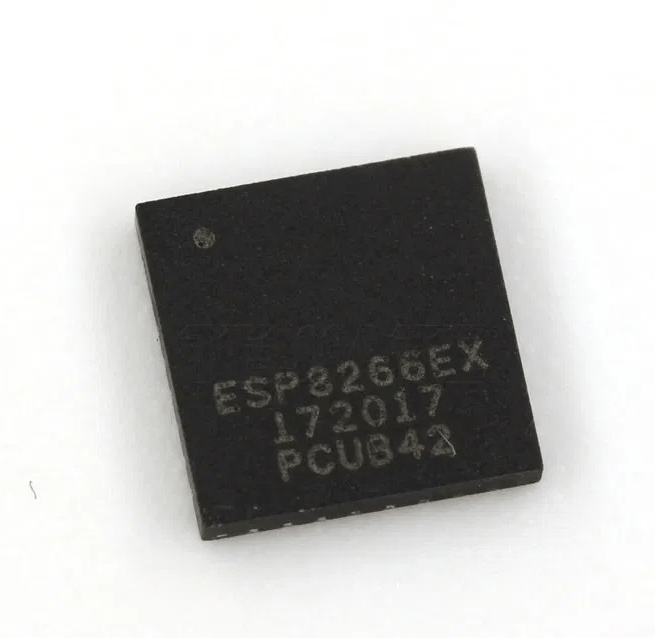

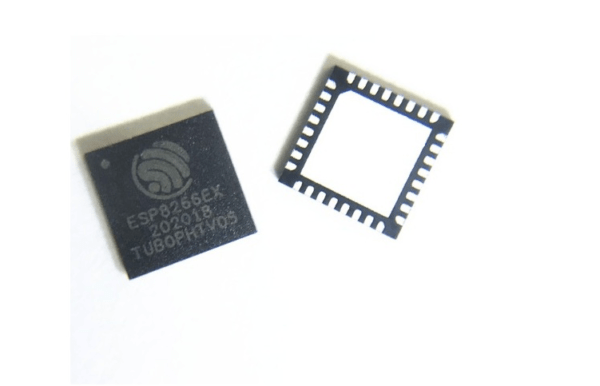

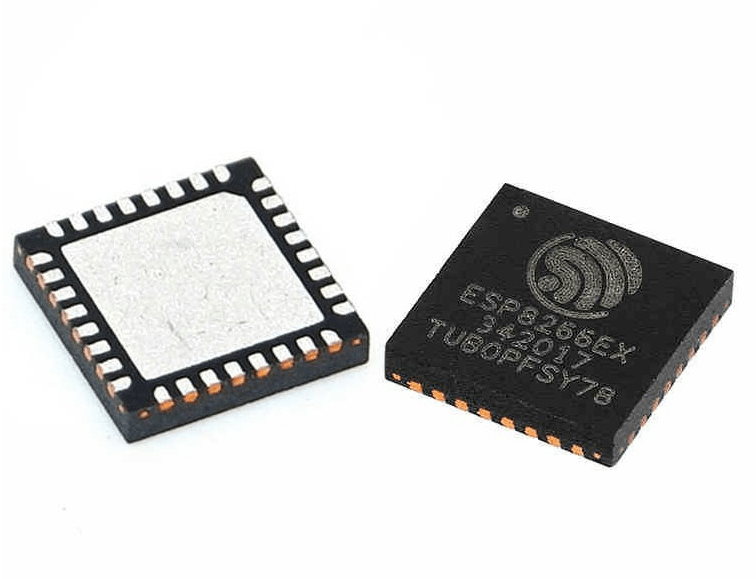

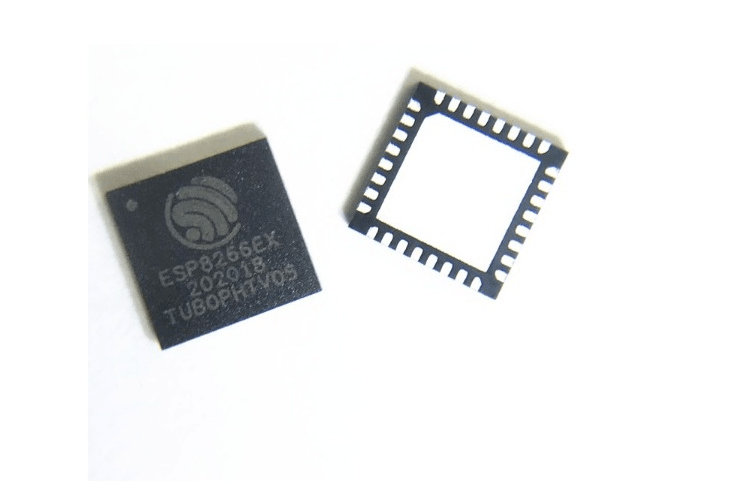

1 x ESP8266EX IC QFN32

Manufacturer: Espressif
Frequency Rating: 2.4GHz
Case/Package: QFN 32
Core: L106
Operating Frequency(GHz) 2.4 to 2.5GHz
Data Rate 72.2 Mb/s Max
Output Power 20 dBm
Sensitivity (dBm): -72 dBm
Operating Supply Voltage(V) 2.5 V to 3.6 V
Additional Specs. 56 mA, Supply Current Receiving
Supply Current Transmitting 170 mA
Program Memory (KB) 1 MB
Program Memory Type FLASH
Length (mm): 5 mm
Width (mm): 5 mm
Data RAM Size 50 kB
Data RAM Type SRAM
Interface Type ADC, GPIO, I2C, I2S, SDIO, SPI, UART
Mounting Style SMD/SMT
Data Bus Width: 32bit
Maximum Clock Frequency 160 MHz
Operating Temperature (°C) – 40 C To 125 C
Product Type RF System on a Chip – SoC
Net Weight 68.500 mg
Shipping Weight 0.008 kg
Shipping Dimensions 1 × 1 × 1 cm

15 Days Warranty Against Sealed Product
