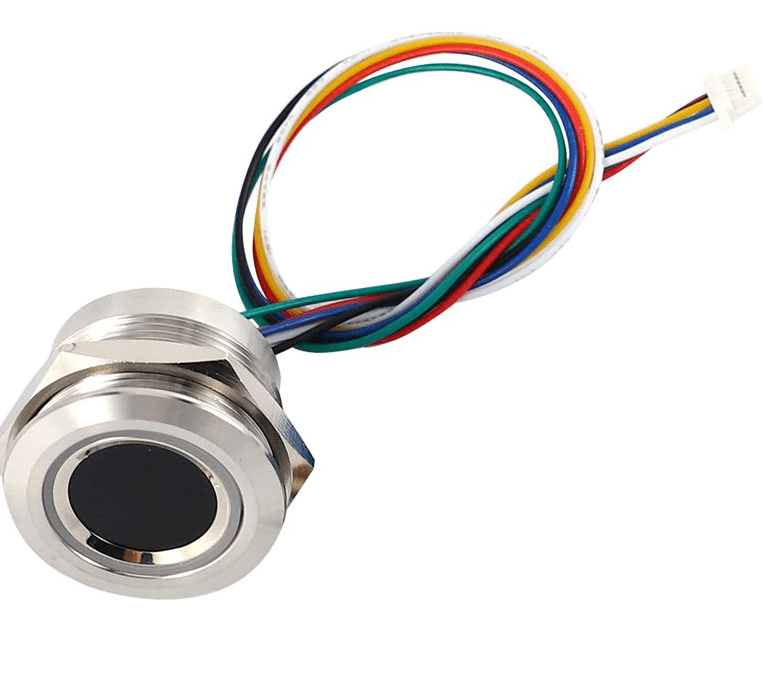

Grow KL202 +R503 DC12V Low Power Consumption Ring Fingerprint Access Control Board
Original price was: ₹2,710.00.₹2,296.61Current price is: ₹2,296.61.
greeninurja Benefits
GST Invoice Available
Secure Payments
365 Days Help Desk
Return & Warranty Policy
Upto 2 Days Returnable
Missing Product
Wrong Product
The Grow KL202 + R503 DC12V Low Power Consumption Ring Fingerprint Access Control Board offers a reliable, low power fingerprint access solution with a 120-fingerprint capacity. Featuring the STM8 microcontroller, it supports a relay output (10A max), enabling easy integration into security systems. This module is ideal for access control in various applications like offices or secure rooms, with fast scanning and verification speeds.
Similar Products
About This Product
Description
SKU: 835802
- Model: KL202
- Processor: STM8
- Operating Voltage (VDC):10 ~ 24
- Output Type:Relay (Max current: 10A)
- Fingerprint Capacity:120
- Low Power Consumption.
- 120 Fingerprint Capacity.
₹ 2,710.00 (Incl. GST)

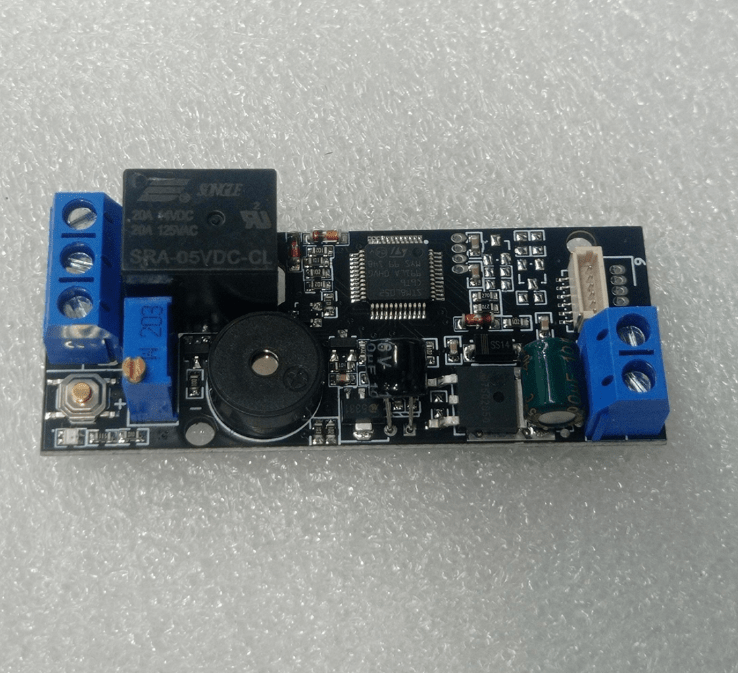

This Grow KL202+R503 DC12V Low Power Consumption Ring Fingerprint Access Control Board is an all-in-one control board with the onboard STM8 microcontroller. This module can act as a standalone system for the fingerprint access control system. The board comes with an onboard relay which is activated by the microcontroller when the fingerprint is detected. The activation time of the relay can be controlled via a multiturn potentiometer, which can be adjusted through 0.5 sec -13 sec.
How To Use:
- After providing power to the module, the module will be in its initial factory mode where any fingerprint can activate the relay.
- To register the fingerprint long press the SET button for 3-4 sec, when the BLUE LED starts blinking it indicates that the module is ready to register the fingerprint.
- Now place the finger which you want to register on the scanner and after the 5 beeps remove the finger. If you want to add other fingerprints then you can add or wait for some time till the LED stops blinking.
- After the LED stops blinking you can use the registered fingerprint to activate the relay. When a registered fingerprint is read by the sensor the BLUE led will glow around the sensor and a RED/ORANGE led will glow if an unregistered fingerprint is detected.
- The SET time of the relay can be adjusted by the multiturn potentiometer.
Features:
- Low Power Consumption.
- 120 Fingerprint Capacity.
- Low Power Consumption.
Package Includes:
1 x Grow KL202+R503 DC12V Low Power Consumption Ring Fingerprint Access Control Board
| Item Type: | Control Board |
| Model Type: | Fingerprint Control Board |
| Operating Voltage (V): | 10 to 24 |
| Model No.: | KL202 |
| Processor | STM8 |
| Output Type: | Relay (Max current: 10A) |
| Fingerprint Capacity | 120 |
| Standby Current (µA) | 15uA |
| Scanning Speed | < 0.2 second |
| Verification Speed | < 0.3 second |
| Matching Method | 1:1; 1:N |
| False Rejection Rate | ≤1% |
| False Acceptance Rate | ≤0.001% |
| Operating Temperature (°C) | -20 to 60 |
| Operating humidity | 10 to 85% |
| Shipping Weight | 0.00008 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
15 Days Warranty
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defects. Replacement will be done against manufacturing defects.
What voids warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
