Description

SKU: 783270

1. Wide Working Voltage Range: DC 4.5V- 20V
2. Current Drain: <60uA
3. Detection Angle: <140°
4. Detection Distance: 3 to 7m (can be adjusted)
5. Blockade time: 2.5s (Default)
6.  Work temperature: -20-+80°C
7. Jumper for trigger.

₹ 65.00 (Incl. GST)

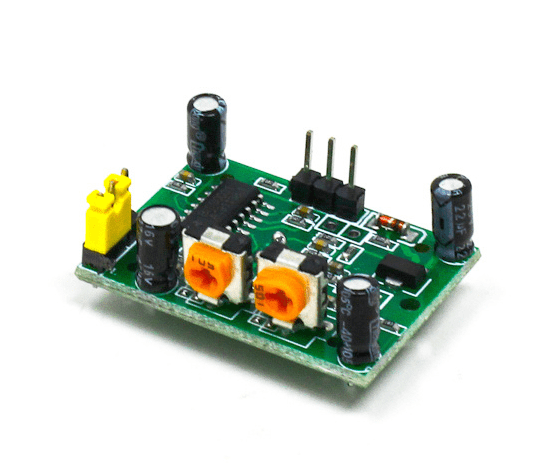

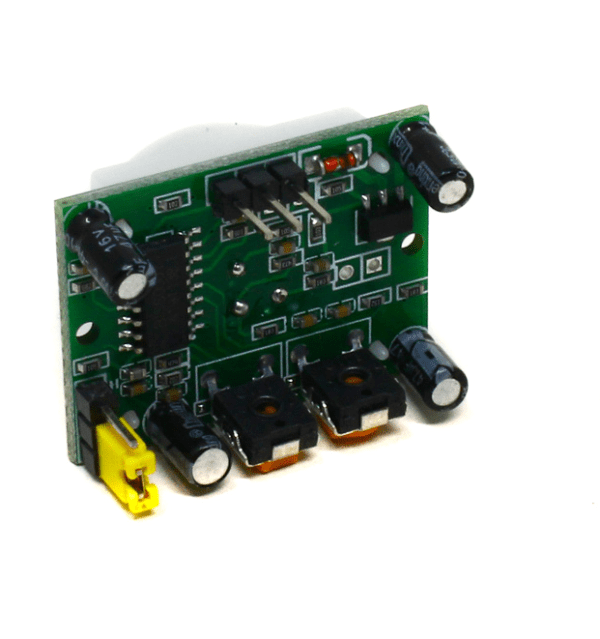

This is a HC-SR501 PIR with Jumper at back for trigger.

The PIR Motion Sensor Detector Module HC SR501 allows you to sense motion. It is almost always used to detect the motion of a human body within the sensor’s range. It is often referred to using “PIR”, “Pyroelectric”, “Passive Infrared” and “IR Motion” sensor.

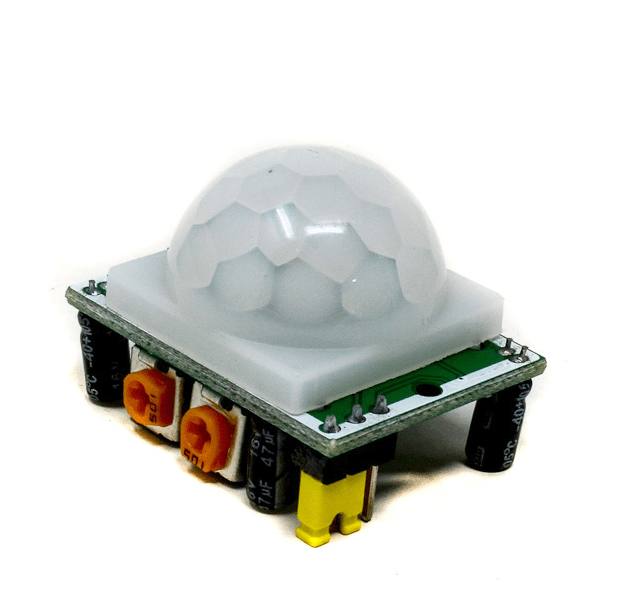

The module has an onboard pyroelectric sensor, conditioning circuitry, and a dome-shaped Fresnel lens. It has a delay time adjustment Potentiometer and sensitivity adjustment Potentiometer. Compatible with ARDUINO, RASPBERRY PI, AVR, PIC, 8051, etc.

To know more about how to interface PIR sensor with raspberry Pi Click here!

 Features :

1. Infrared Sensor with Control Circuit Board
2. The Sensitivity and Holding Time is adjustable.
3. Blockade time: 2.5s (Default)
4. Sensitive Setting: Turn to Right, Distance Increases (About 7M); Turn to Left, Distance Reduce (About 3M)
5. Time Setting: Turn to Right, Time Increases (About 200S); Turn to Left, Time Reduce (About 5S).

Package Includes :

1 x HC-SR501 PIR with Jumper at back for trigger.
