Description

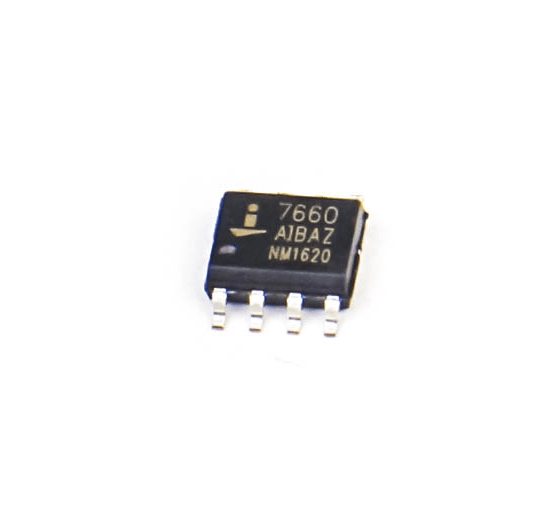

ICL7660 CMOS Voltage Converter IC is a monolithic CMOS power circuit. It performs supply voltage conversions from positive to negative for an input range of +1.5V to +10.0V resulting in complementary output voltages of -1.5V to -10V.
________________________________________
Features:
1. Simple Conversion of +5V Logic Supply to ±5V Supplies.
2. Simple Voltage Multiplication (VOUT = (-) nVIN).
3. Easy to Use – Requires Only 2 External Non-Critical Passive Components.
4. No External Diode Over Full Temp. and Voltage Range.
5. Pb-Free Plus Anneal Available (RoHS Compliant).
Package Includes:
1 x ICL7660 CMOS Voltage Converter IC.

Manufacturer: Generic
Input Supply Voltage (VDC) 1.5 ~ 10
Supply Current (A) 500 μA
Oscillator Frequency 10kHz
Operating Temperature (°C) -40 to 85
Mounting Type: SMD/SMT

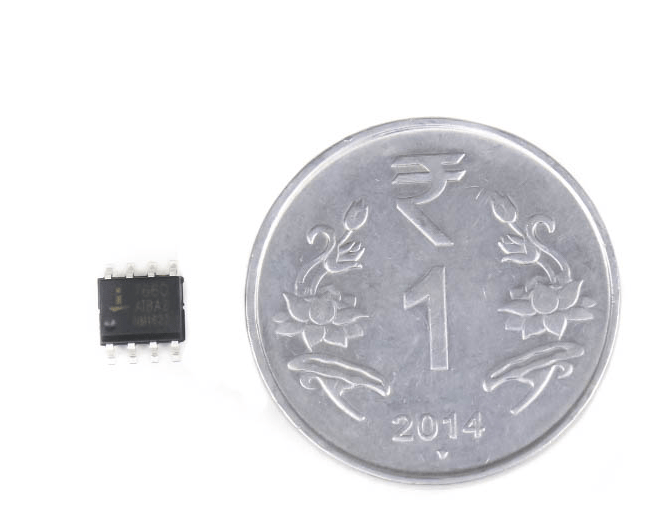

Length (mm): 5
Width (mm): 4
Height (mm): 1.5
Weight (g): 1 (approx)
Shipping Weight 0.01 kg
Shipping Dimensions 3 × 3 × 2 cm
15 Days Warranty Against Sealed Product
