Sale!

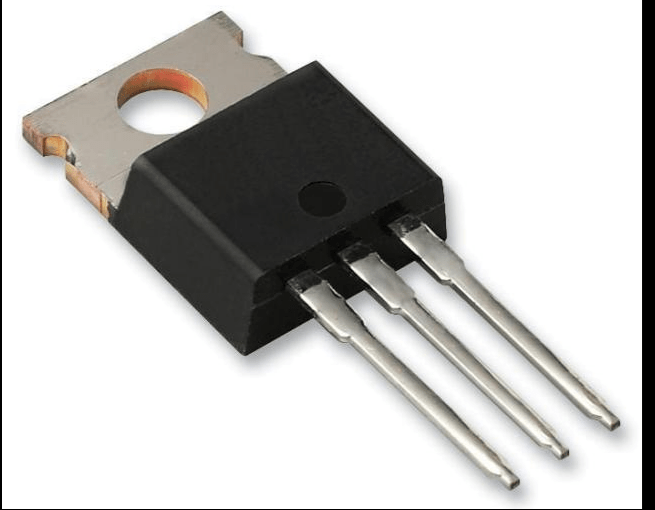

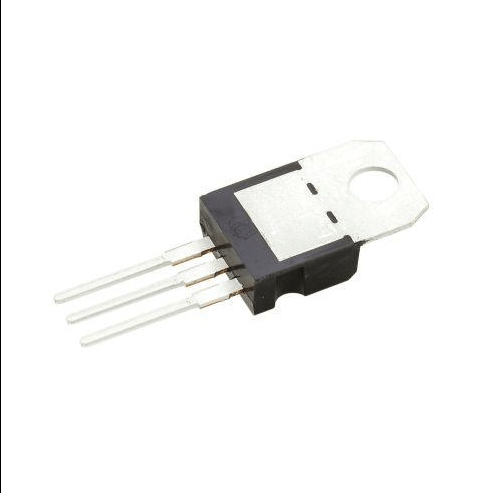

L78M05CV (L7805CV) TO-220 Linear Voltage Regulator (Pack of 3 ICs)

Original price was: ₹37.00.Current price is: ₹27.97.

Add to Wishlist
Add to Wishlist
[normal_buy_now]

greeninurja Benefits

GST Invoice Available

Secure Payments

365 Days Help Desk

Return & Warranty Policy

Upto 2 Days Returnable

Missing Product

Wrong Product

SKU: 162044
1. Fixed output voltage is 5V
2. Output current is 0.5A
3. Dropout voltage is 2V
4. Maximum DC input voltage is 35V
5. Output transition SOA protection
6. Output voltage tolerance is 4%

Similar Products

No recently viewed products to display

About This Product

Description

egulation by eliminating distribution problems associated with single point regulation. The L78M05CV fixed voltage regulator is designed with thermal overload protection that shuts down the circuit when subjected to an excessive power overload condition, internal short circuit protection that limits maximum current the circuit will pass and output transistor safe area compensation that reduces the output short circuit as the voltage across the pass transistor is increased. If adequate heat sinking is provided then this positive voltage regulator can deliver over 0.5A output current.
Note: Image may vary from actual product in terms of Manufacturer/Brand name according to the availability.
________________________________________
Features:
1. Fixed output voltage is 5V
2. Output current is 0.5A
3. Dropout voltage is 2V
4. Maximum DC input voltage is 35V
5. Output transition SOA protection
6. Output voltage tolerance is 4%
7. Operating temperature range 0°C to 125°C
8. Applications: Power Management.

________________________________________
Package Includes:

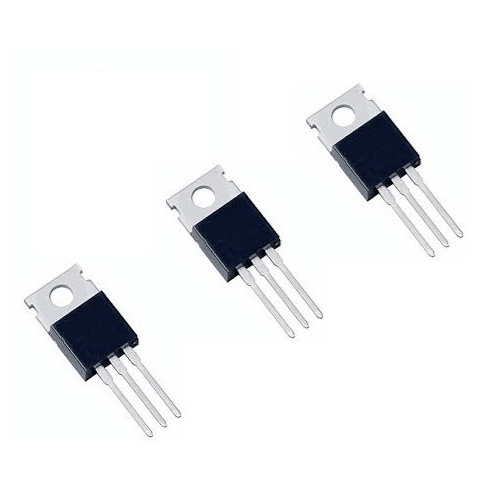

1 x L78M05CV (L7805CV) TO-220 Linear Voltage Regulator (Pack of 3 ICs)

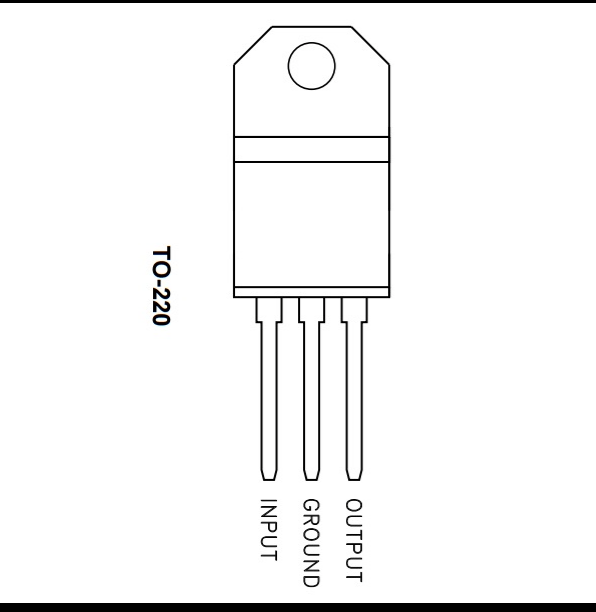

Case/Package: TO2203
Mounting Type: Through Hole
Model Series: L78M
No. of Outputs: 1
Output Type: Fixed
Polarity: Positive
Input Voltage (V): 7V to 35V
Output Voltage (V): 5
Max. Output Current (A) 500 mA
Operating Temperature (°C) 0 to 125
Load Regulation 100 mV
Line Regulation 100 mV
Dimensions (L x W x H) mm 10.4 x 4.6 x 9.15
Shipping Weight 0.1 kg
Shipping Dimensions 8 × 6 × 3 cm

15 Days Warranty Against Sealed Product
________________________________________
This item is covered with a standard warranty of 15 days from the time of delivery against manufacturing defects only. This warranty is given for the benefit of Robu customers from any kind of manufacturing defect. Replacement will be done against manufacturing defects.
________________________________________
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
________________________________________
Warranty Against Sealed Product:
This product comes with manufacturer seal so, warranty Policy shall cover only those issues pertaining to the manufacturing defects in the product. In any other case, No return will be accepted if the seal is broken.
