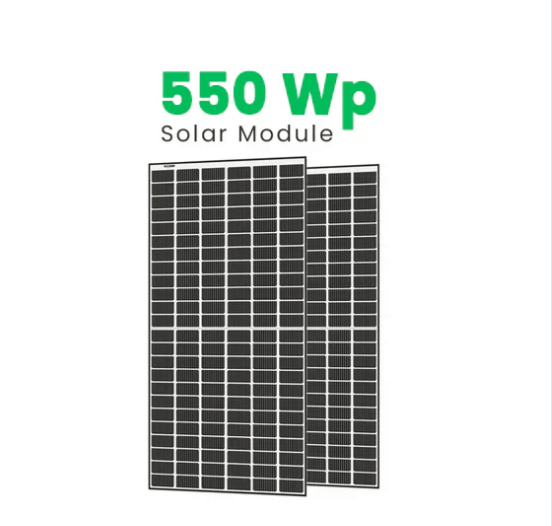

Loom Solar Mono Perc Half Cut Shark 550 Watt Bifacial, 144 Solar Cells PV Module

Description

The Shark 550 Wp PV Module is one of the most powerful and advanced technology solar panels used in residential, commercial, industrial and agricultural applications. In addition to being able to generate extra electricity in minimum rooftop areas as well as cloudy weather, this module comprises 144 Mono Half Cut Solar Cells. It is suitable for both stand-alone and grid-connected rooftop solar systems.

It is available in monofacial as well as bifacial technology
30%-50% more power in a smaller space
Reducing shadow impact from 33% to 16.5%

Features Summary

Excellent Reliability
Lower Degradation
Better Low-light Performance
High Power & Efficiency

Technical Specifications

Brand	Loom Solar
Nominal power	550 Wp Bifacial
Open-circuit voltage (VoC)	49.70
Short-circuit current (Isc)	13.75
Voltage at maximum power (Vmp)	42.50
Current at maximum power (Imp)	12.95
Power reduction per °C	0.45%
Voltage reduction per °C	0.33%
Length	2278 mm
Width	1134 mm
Weight	32 kg
Efficiency	21.40%
No. of solar cell	144
Panel Technology	Mono Perc (latest)
Manufacturer Warranty	10 years on Manufacturing defects
Performance Warranty	25 Years (90% module efficiency after 10 years, 80% module efficiency after 25 years)
Additional Features	A+ Grade, anti-PID Mono cells
	Cell Conversion efficiency > 20%
	1.4-meter wire for connection with MC4 connectors Inside

Applications

Home Solar Solutions	Commercial & Industrial Solutions
Large Scale Solar Power Plants	Energy Storage Solutions
