Description

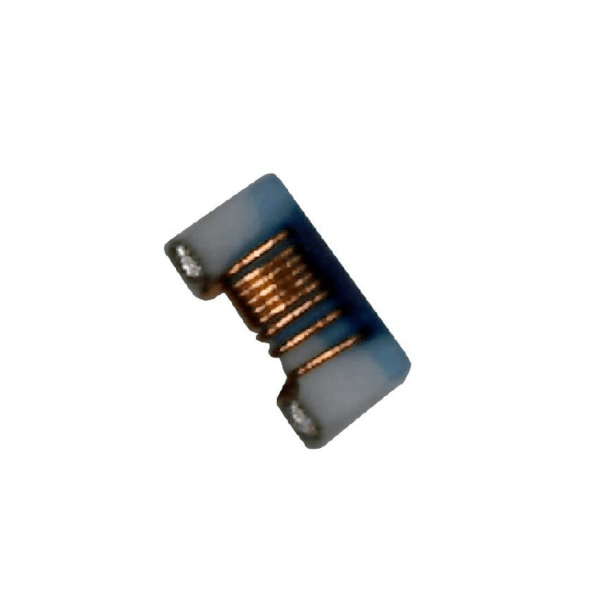

LQW15AN11NG00D-MURATA-Wirewound Inductor, 11 nH, 0.14 ohm, 5.5 GHz, 500 mA, 0402 [1005 Metric], LQW15AN_00
________________________________________
Specifications:
Inductance: 11nH
DC Resistance Max: 0.14ohm
Self Resonant Frequency: 5.5GHz
DC Current Rating: 500mA
Inductor Case / Package: 0402 [1005 Metric]
Inductance Tolerance: 2%
Inductor Construction: Unshielded
Core Material: Non-Magnetic
Product Length: 1mm
Product Width: 0.6mm
Product Height: 0.5mm
Product Range: LQW15AN_00
________________________________________
Package Includes:
1 x LQW15AN11NG00D-MURATA-Wirewound Inductor, 11 nH, 0.14 ohm, 5.5 GHz, 500 mA, 0402 [1005 Metric], LQW15AN_00
Manufacturer: Murata
Inductance: 11nH
Tolerance (%): 2
Current Rating (A): 500mA
Case/Package: :0402
Shipping Weight 0.01 kg
Shipping Dimensions 4 × 4 × 1 cm
15 Days Warranty
