Description

The MG82F6D17 is a single-chip microcontroller based on a high performance 1-T architecture 80C51 CPU that executes instructions in 1~7 clock cycles (about 6~7 times the rate of a standard 8051 device), and has an 8051 compatible instruction set. Therefore at the same performance as the standard 8051, the MG82F6D17 can operate at a much lower speed and thereby greatly reduce the power consumption
Note:
1. For more technical details, go through the datasheet in the attachments
2. Image may vary from actual product in terms of brand and value printed
________________________________________
Features:
1. Flexible IAP size by software configured

2. Code protection for flash memory access

3. Flash write/erase cycle: 20,000
4. Low power consumption
________________________________________
Package Includes:

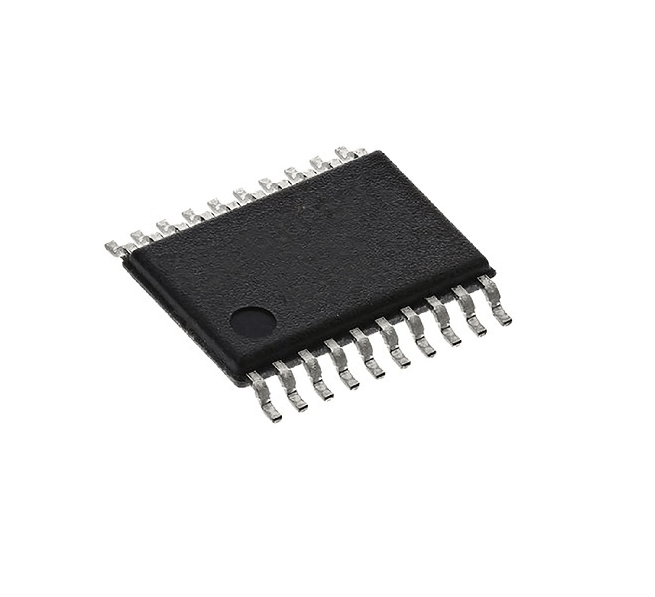

1 x Megawin MG82F6D17AL20 20-SSOP Microcontroller IC
Manufacturer: Megawin
Model MG82F6D17AL20
Product Type Microcontroller IC
Clock Speed 12MHz
RAM: On-chip 256 bytes
Operating Voltage (V): 1.8V – 5.5V
Data ROM Size and Type 16K Bytes Flash ROM
Operating Temperature (°C) -40°C to +105°C
Shipping Weight 0.01 kg
Shipping Dimensions 4 × 4 × 1 cm
