Description

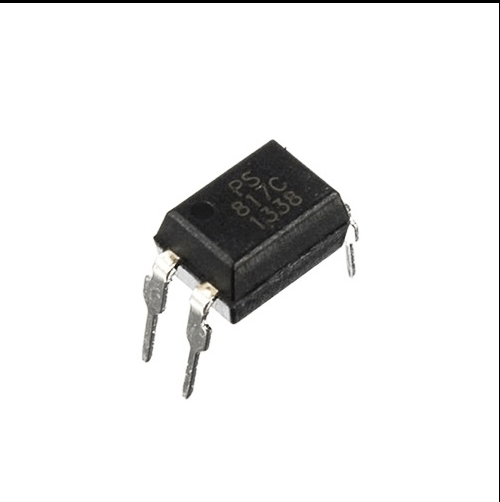

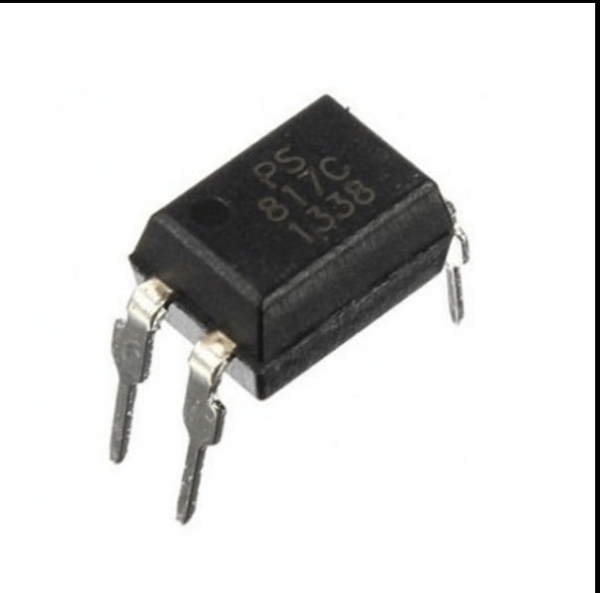

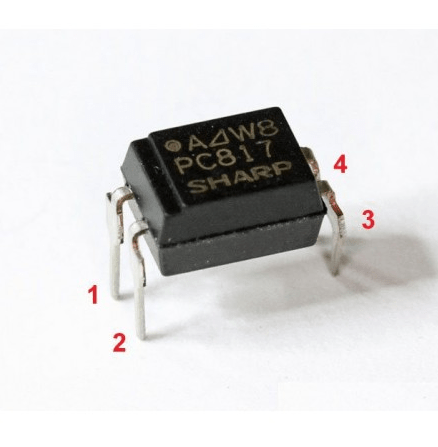

The PC817 DIP-4 Transistor Output Optocoupler is a 1-channel 4-pin Transistor Output Photocoupler contains an IRED optically coupled to a phototransistor. It is suitable for programmable controllers and facsimiles.
________________________________________
Features:
1. 10 to 20mA Collector current.
2. 50mA Forward current.
3. 6V Reverse voltage.
4. 200mW Total power dissipation.
5. Applications: Communications & Networking, Industrial.
________________________________________
Package Includes:

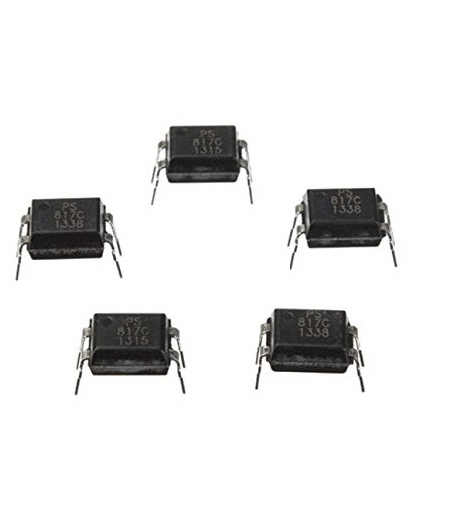

1 x PC817 DIP-4 Transistor Output Optocoupler (Pack of 5 ICs)
Case/Package: DIP-4
Mounting Type: Through Hole
Rise Time 4μs
Fall Time 3μs
Operating Temperature (°C) -30 to 100
Dimensions (L x W x H) mm 6.12 x 4.69 x 3.61
Collector Emitter Voltage 80 V
Maximum Collector Current 50 mA
Isolation Voltage 5000 Vrms
Saturation Voltage 0.2 V, Maximum Collector Emitter Side
Vf – Forward Voltage 1.2 V
Reverse Voltage: 6 V
Power Dissipation: 200 mW
No. of Channels: 1
Shipping Weight 0.01 kg
Shipping Dimensions 8 × 6 × 2 cm
15 Days Warranty Against Sealed Product
