Description

The Pro Micro is a compact and versatile microcontroller development board based on the ATmega32U4. It’s similar to the Arduino Leonardo but smaller, making it ideal for projects where space is limited. This version operates at 5V and 16MHz, offering a good balance of performance and compatibility. It features 12 digital input/output pins (5 of which can be used as PWM outputs), an 8-bit AVR microcontroller with 32KB Flash Memory, 2.5KB SRAM, and 1KB EEPROM. It’s easily programmable via the Arduino IDE using a micro USB connection. Perfect for DIY projects, robotics, wearables, and more

This Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino development board has 4 channel 10 bit ADC, 5 PWM pins, 12 DIO, and a hardware serial connection Rx and Tx you are familiar with Running on 16MHz and 5V, this board will remind you a lot of other Arduino compatible boards that you like.

There is a voltage regulator on board, so it can accept up to 12V DC.

The Micro is a microcontroller board based on the ATmega32U4. It has 20 digital input/output pins (of which 7 can be used as PWM outputs and 12 as analog inputs), a 16 MHz crystal oscillator, a micro USB connection, an ICSP header, and a reset button.

It contains everything needed to support the microcontroller; simply connect it to a computer with a micro USB cable to get started. It has a form factor that enables it to be easily placed on a breadboard.

The Micro board is similar to the Arduino Leonardo in that the ATmega32U4 has built-in USB communication, eliminating the need for a secondary processor. This allows the Micro to appear to a connected computer as a mouse and keyboard, in addition to a virtual (CDC) serial / COM port.

If you supply an unstable power supply board, be sure to connect to the “RAW”, not on the VCC pin. It has also added a PTC fuse and diode protection to the power circuit and to correct the RX and LED TX circuits.

 Why Choose Original Arduino Boards Over Clones?

Original Arduino boards offer superior quality, reliability, and long-term support, ensuring your projects

run smoothly and efficiently. Here’s a quick comparison:

Features :

1. ATMEGA32U4 running in 5V / 16MHz
2. Support Arduino IDE V1.0.1
3. Micro USB interface programming on the board
4. Four 10-bit ADC pin
5. 12 digital I / O (5 PWM capability)
6. Rx and Tx hardware serial connection.

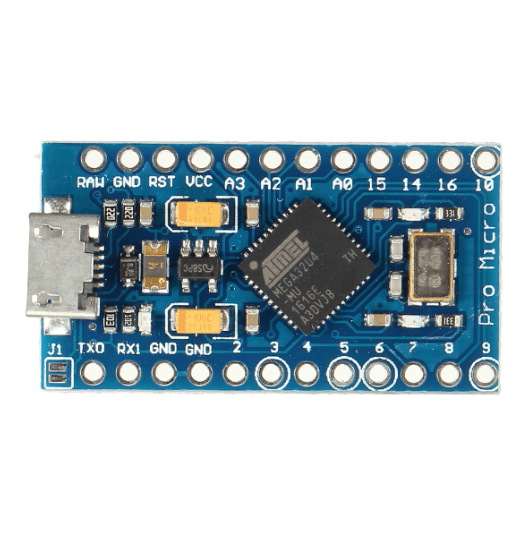

Pin Diagram:

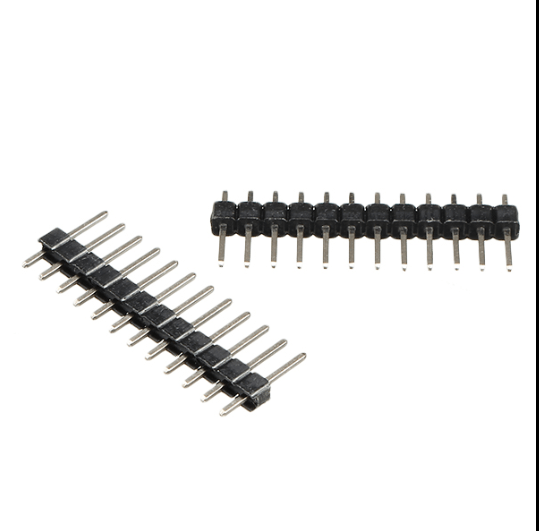

Package Includes :

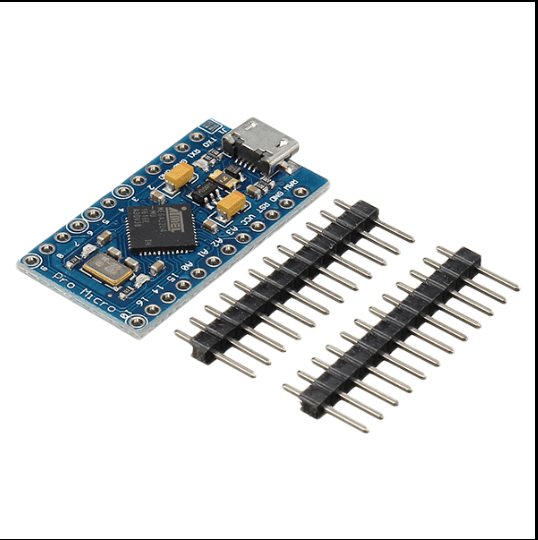

1 x Pro Micro 5V 16M Mini Leonardo Microcontroller Development Board For Arduino
