Description

RD06HHF1-MITSUBISHI-6W RF power mosfet for the HF band up to 30MHz. Supply voltage 12.5V. The RD06HHF1 from Mitsubishi Electric is a high-frequency RF power MOSFET designed for applications in the HF band.

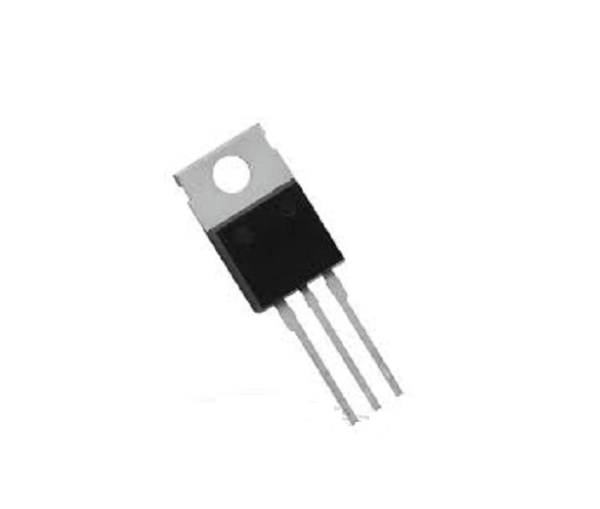

Image for reference only.
________________________________________
Specifications:
1. Frequency Range: 30 MHz
2. Output Power: 6W
3. Supply Voltage (VDS): 12.5V
4. Current: 4A to 5A.
5. Power Gain: 12-16 dB
6. Operating Temperature(°C): 150°C
Note: For more technical information, refer the datasheet in Attachments.
________________________________________
Package Includes:
1 x RD06HHF1-MITSUBISHI-6W RF power mosfet for the HF band up to 30MHz.Supply voltage 12.5V.
Manufacturer: Mitsubishi Electric
Frequency Rating: 30MHz
Output Power (W): 6
Voltage Rating (V): 12.5
Current Rating (A): 4 to 5
Shipping Weight 0.01 kg
Shipping Dimensions 8 × 5 × 2 cm
1 Year Warranty
