Description

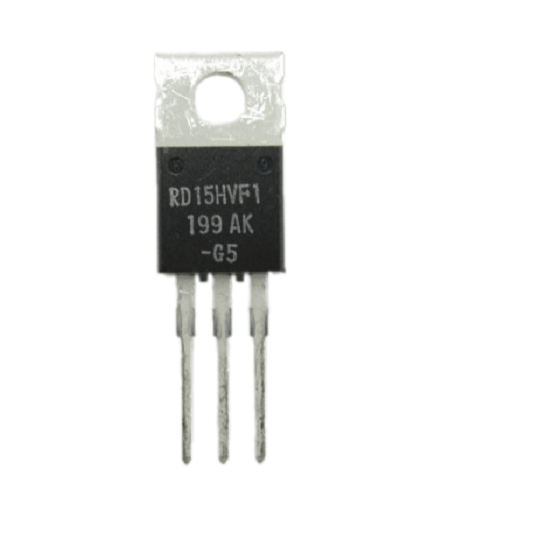

RD15HVF1-501-MITSUBISHI-Mitsubishi MOSFET RF Power Transistor 175 MHz 15W. The RD15HVF1-501 is engineered for RF amplification, specifically suited for use in applications operating up to 175 MHz. With a maximum output power rating of 15W, this transistor is ideal for various communication and broadcasting systems.
________________________________________
Specifications:
1. Output Power: 15W
2. Frequency Range: Up to 175 MHz
3. Supply Voltage (VDS): Typically around 12.5V
4. Current: 5A
5. Package Type: RF package
6. Gate-Source Voltage (VGS): ±20V
Note: For more technical information, refer the datasheet in Attachments.
________________________________________
Package Includes:
1 x RD15HVF1-501-MITSUBISHI-Mitsubishi MOSFET RF Power Transistor 175 MHz 15W
Manufacturer: Mitsubishi Electric
Output Power (W): 15
Voltage Rating (V): 12.5
Current Rating (A): 5
Frequency Rating: 175MHz
Shipping Weight 0.01 kg
Shipping Dimensions 8 × 5 × 2 cm
1 Year Warranty
________________________________________
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
________________________________________
What voids the warranty:
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
