Description

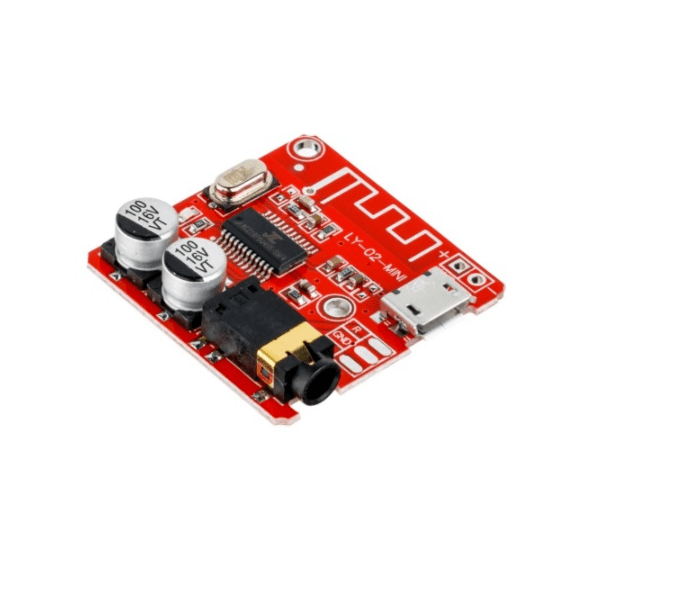

The Redboard VHM-314 Bluetooth 5.0 MP3 Decoder Board is a versatile and high-performance audio decoding solution designed to enhance your audio playback experience. This compact board incorporates cutting-edge Bluetooth 5.0 technology, ensuring a stable and efficient wireless connection for seamless audio streaming.
________________________________________
Features:
1. USB-powered Universal Micro USB 5V power supply
2. 3.7-5V Supply Pad External 3.7-5V lithium battery power conversion
3. LED indicator Bluetooth mode long blue light
4. 3.5mm stereo audio interface Standard 3.5mm interface, output stereo sound source, plug in headphones, connect amplifiers and other devices
5. SNR 90dB, indicating the quality of the audio signal relative to background noise.
6. THD+N -70dB, measuring the level of unwanted harmonic distortion and noise in the audio signal.
7. Crosstalk: -86dB, representing the unwanted transfer of signals between audio channels.
8. Dynamic Range 91dB, indicating the ratio of the loudest and quietest parts of an audio signal.
9. A2DP/AVCTP/AVDTP/AVRCP/HFP, showcasing compatibility with various Bluetooth profiles for audio and control functionalities.
________________________________________
Package Includes:
1 x Redboard VHM-314 Bluetooth 5.0 MP3 Decoder Board （Micro USB）
Manufacturer: Generic
Voltage Rating: 3.7 to 5VDC
Length (mm): 30mm
Width (mm): 29mm
Shipping Weight 0.006 kg
Shipping Dimensions 4 × 4 × 1 cm
15 Days Warranty
