Description

The SN74HC157DR from Texas Instruments is a quadruple 2-to-1 line data selector/multiplexer IC in a SOIC-Narrow-16 package. It features 4 independent 2-to-1 multiplexers, each with two input lines and a single output line. This IC is designed for high-speed digital switching and signal routing, making it ideal for applications such as data selection, multiplexing, and routing in logic circuits.
________________________________________
Note:

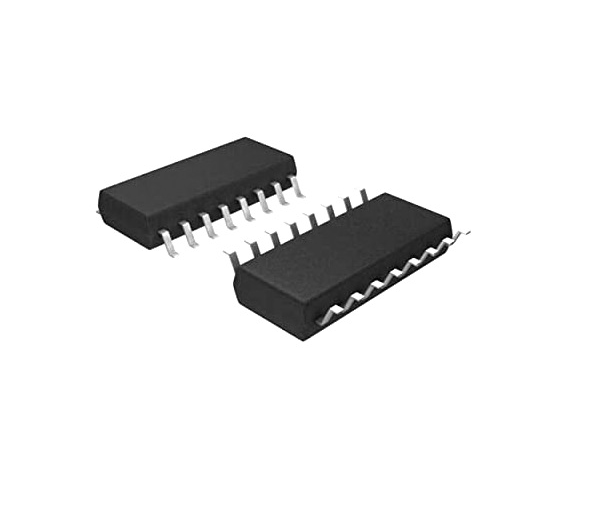

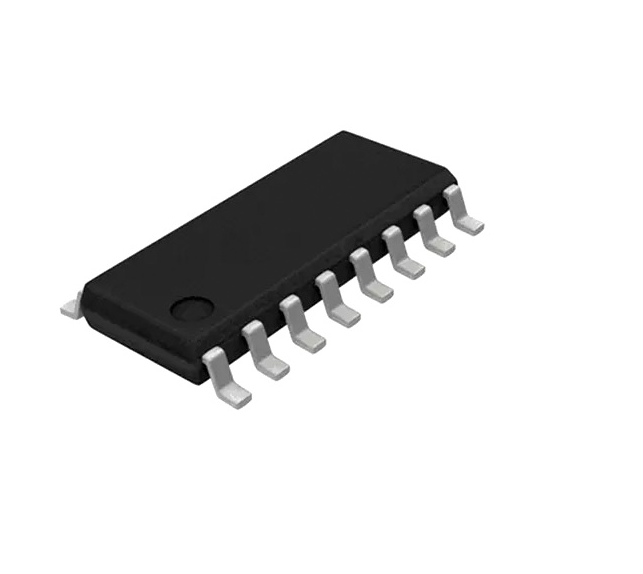

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features:
1. Four 2-input multiplexers in a single package
2. Propagation Delay: 32 ns propagation delay
3. Operating Voltage: 2V to 6V
4. Temperature Range: -40°C to +85°C.
5. High and low-level output currents : ±7.8mA
6. Maximum Clock Frequency: 28 MHz
________________________________________
Package Includes:
1 x SN74HC157DR – Quadruple 2-1-Line Data Selectors/Multiplexer IC SMD-16 Package
Manufacturer: Generic
Product Name SN74HC157DR
Case/Package: SMD 16
Operating Voltage 2V and 6V
Operating Temperature (°C) -40°C to +85°C
Maximum Clock Frequency 28 MHz
Output Current (mA) ±7.8mA
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
