Description

The TDA7269A is a Class-AB audio amplifier IC designed for stereo audio amplification with a 14W output power (8Ω load). It features a low THD+N of 0.03%, operates with dual supply voltages between ±5V and ±22V, and supports a wide temperature range of 0°C to 70°C. The IC is housed in a Multiwatt-11 package and offers an 80dB gain with a power dissipation of 40W. This amplifier is ideal for audio applications requiring high performance in a compact form.
Note:

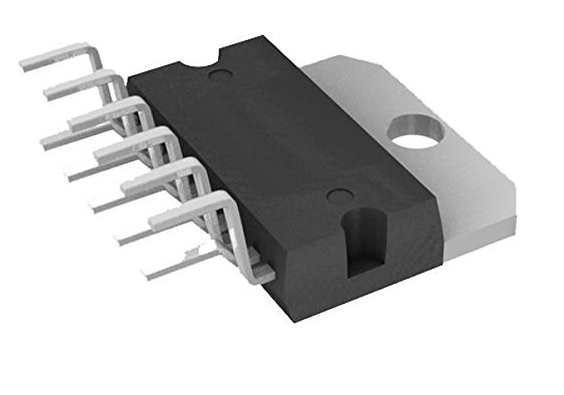

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features :
1. Output Power: 14W (8Ω load)
2. Class: Class-AB
3. Dual Supply Voltage: ±5V to ±22V
4. Gain: 80 dB
5. Power Dissipation: 40W
6. Operating Temperature: 0°C to 70°C
7. PSRR: 60 dB
8. Number of Channels: 2
________________________________________
Package Includes:
1 x TDA7269A Audio Amplifiers 14W Stereo Amplifier IC DIP-11 Package
Manufacturer: STMicroelectronics
Model No.: TDA7269A
Case/Package: SIP 11
Output Power (W): 14
Supply Voltage (V): 5 to 22
Operating Temperature (°C) 0 to 70
Mounting Type: Through Hole
Input Bias Current (Ib) 500 nA
No. of Channels: 2
Output Current (A): 3
Power Dissipation (W) 40
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
