Description

The TDA7388 is a Class-AB audio amplifier IC from STMicroelectronics, designed for 4-channel quad applications. It provides 4W output power at 4Ω impedance and offers a low Total Harmonic Distortion (THD+N) of 0.1%. The device operates with a supply voltage range of 8V to 18V, with a typical operating current of 350mA. It features a gain of 26dB and has a power dissipation capacity of 80W.
Note:

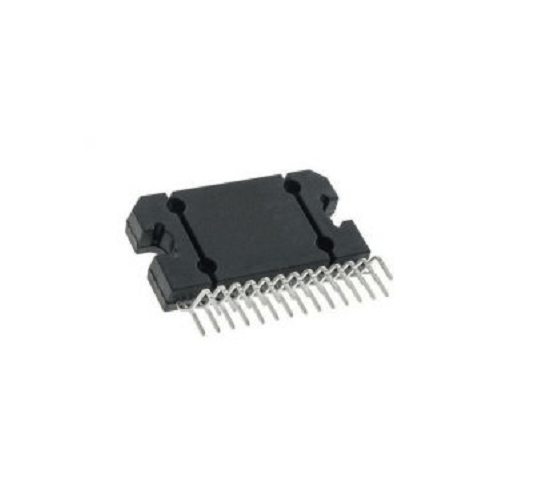

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features :
1. Class-AB Amplifier for low distortion
2. Output Power: 4W at 4Ω impedance
3. Gain: 26dB
4. Wide Supply Voltage Range: 8V to 18V
5. Operating Current: 350mA
6. Power Dissipation: 80W
7. Temperature Range: -30°C to +85°C
________________________________________
Package Includes:
1 x TDA7388 4X41W QUAD BRDG Car Audio Amplifier IC DIP-25 Package
Manufacturer: STMicroelectronics
Model No.: TDA7388
Case/Package: SIP 25
Output Power (W): 4
Supply Voltage (V): 8 to 18
Operating Temperature (°C) -30 to 85
Mounting Type: SMD/SMT
Supply Current(mA) 350
Power Dissipation (W) 80
Input Offset Voltage (Vos) 80 mV
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
