Description

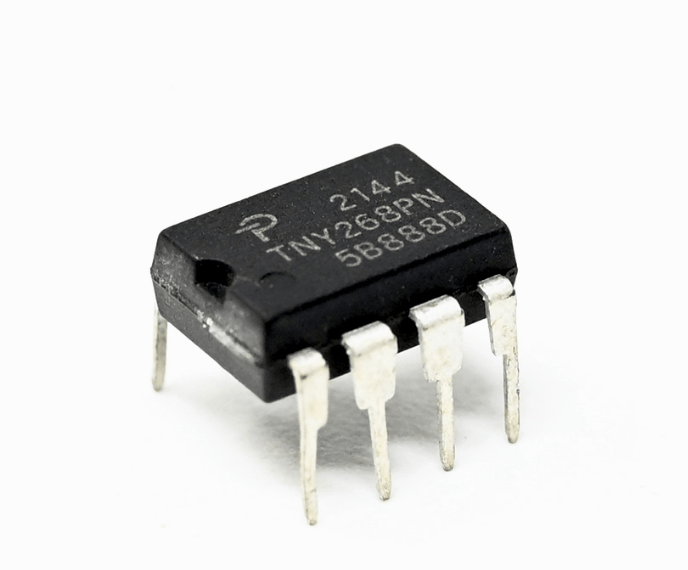

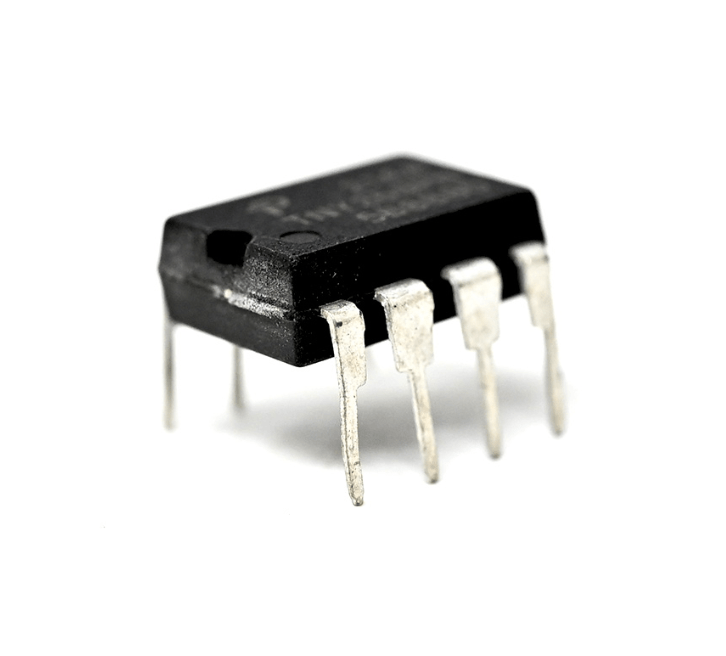

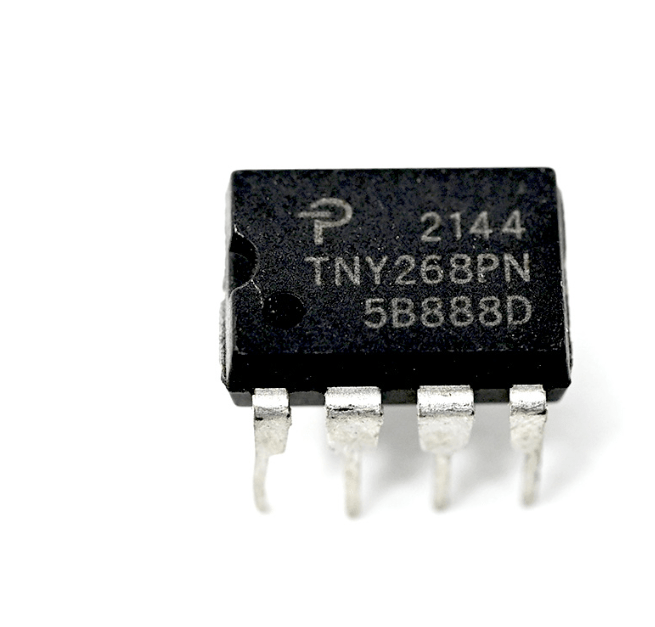

The TNY268PN is an offline switcher IC from Power Integrations, designed for low-power and energy-efficient power supply applications. As part of the TinySwitch-II family, it integrates a high-voltage MOSFET, oscillator, current limit, and thermal shutdown circuitry into a compact DIP-8 package, minimizing external components and simplifying circuit design. With its auto-restart feature, the IC provides protection against overloads, short circuits, and excessive temperatures, ensuring reliable operation.
________________________________________
Note:
1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features:
1. Integrated High-Voltage MOSFET – Reduces external components for a simplified design.
2. TinySwitch-II Technology – Ensures high efficiency and ultra-low standby power consumption.
3. Auto-Restart Protection – Provides safeguards against short circuits, overloads, and overheating.
4. Wide Input Voltage Range – Supports universal AC input (85V to 265V AC).
5. Low Standby Power Consumption – Helps meet global energy efficiency standards
________________________________________
Package Includes:
1 x TNY268PN IC – Power Integrations Off Line Switcher with Low Power IC IC DIP-8 Package
Manufacturer: Power Integrations
IC Type: Switching IC
Item Type: IC.
Model Type: Off Line Switcher IC
Model No.: TNY268PN
Breakdown Voltage 700V
Switching frequency 132kHz
Power 23 W
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
