Description

The TPL5010DDCR from Texas Instruments is a nano-power system timer designed for ultra-low power consumption, making it ideal for battery-powered applications. It features a programmable delay range, a watchdog function, and a manual reset, offering flexibility in various time-critical systems. With a very low operating supply current of 35 nA, the TPL5010DDCR is perfect for systems requiring low power over extended periods. This device is packaged in a compact SOT-23-6 form factor and is ideal for surface-mount technology (SMD/SMT) applications. It operates within a supply voltage range of 1.8V to 5.5V and can withstand a wide temperature range of -40°C to +105°C
Note:

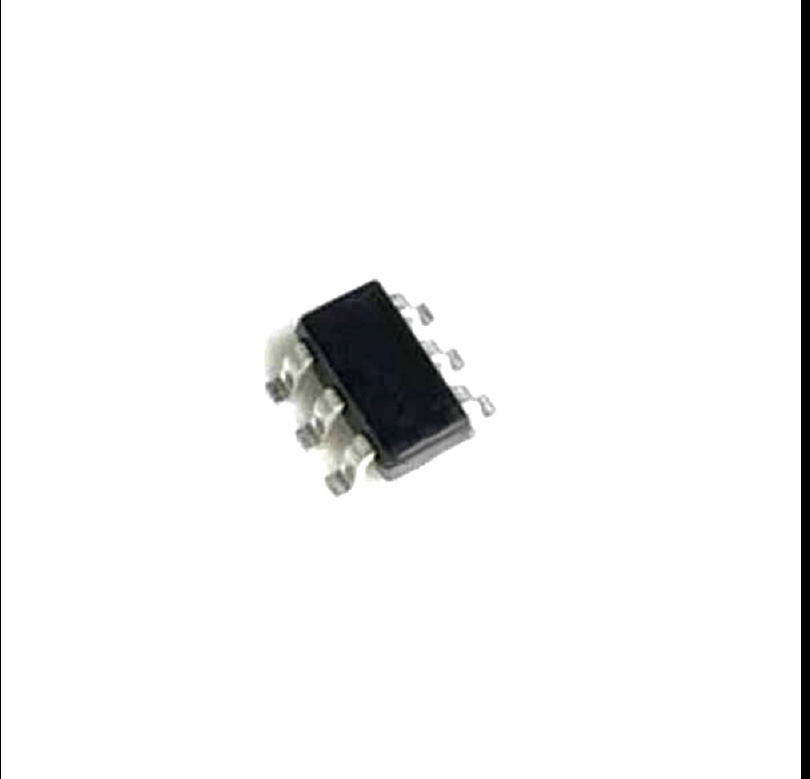

1. Product Images are shown for illustrative purposes only and may differ from the actual product.
2. For Technical Specifications about the IC go through the Datasheet in the Attachment section.

________________________________________
Features :
1. Low Power Consumption: Operates with just 35 nA of supply current, making it suitable for energy-efficient designs
2. Watchdog Function: Provides reliability for systems by ensuring they are operating correctly
3. Programmable Delay Range: Customizable delay time for flexible design
4. Manual Reset: Offers a reset function for added control
5. Supply Voltage: Operates from 1.8V to 5.5V for versatility in power systems
6. Temperature Range: -40°C to +105°C
________________________________________
Package Includes:
1 x TPL5010DDCR – Ultra-Low Power System Timer RTC Watchdog Manual Reset IC SMD-6 Package
Manufacturer: Texas Instruments
Clock IC Type: RTC
Operating Temperature (°C) -40°C to +105°C.
Operating Voltage 1.8V to 5.5V
Supply Current (A) 35 nA
Shipping Weight 0.001 kg
Shipping Dimensions 4 × 4 × 1 cm
